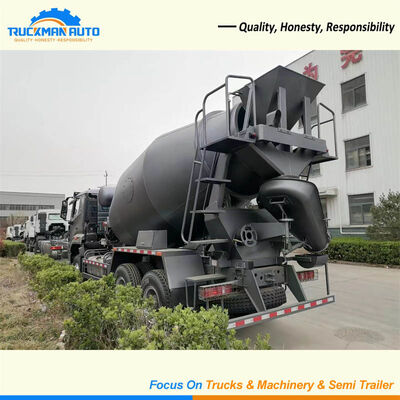

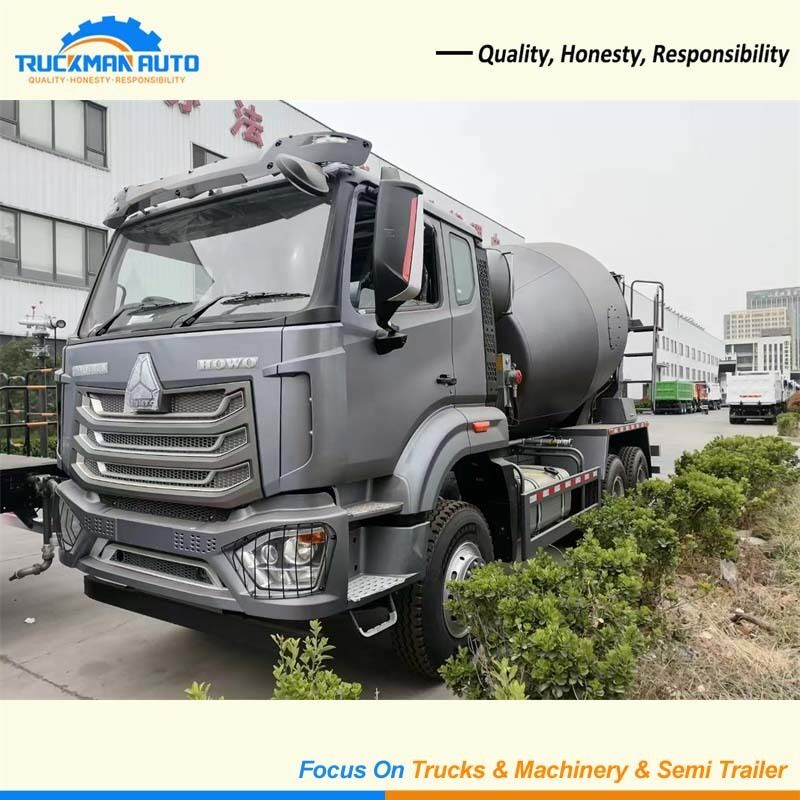

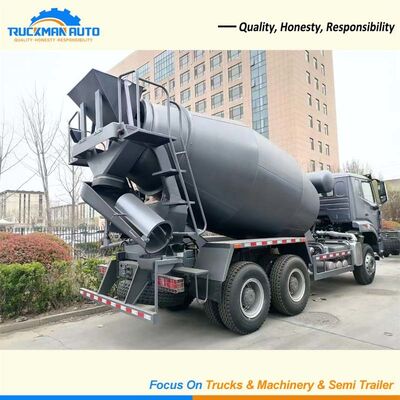

High Quality SINOTRUK HOWO NX 371HP 12 CBM Concrete Mixer Truck For Road And Bridge Construction
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | SINOTRUK |
| 인증: | ECE GCC ISO DOT |
| 모델 번호: | ZZ1257N3241W |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | 41000 |
| 포장 세부 사항: | 왁스를 뿌리고 방수천으로 덮어주세요. |
| 배달 시간: | 30일 |
| 지불 조건: | L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram |
| 공급 능력: | 한 달에 1000 단위 |
|
상세 정보 |
|||
| 엔진: | WD615.47 | 전염: | HW19710 |
|---|---|---|---|
| 전면 액슬: | VGD95 | 리어 액슬: | HC16 |
| 용량: | 12cbm | 선실: | HW76 |
제품 설명
How Much Concrete Can The HOWO 12 CBM Concrete Mixer Truck Carry?
A mixing drum with a nominal volume of 12 CBM has an actual geometric volume of 19.8 CBM, meaning the entire drum is 19.8 CBM in size. However, after deducting the unused space at the top, only 12 CBM can actually be utilized. Furthermore, during concrete mixing and transportation, to prevent segregation or overflow, some space is usually reserved for mixing motion. Under typical operating conditions, the fill ratio is 61%, so the actual amount of concrete that can be transported is 7.32 CBM.Contact us for shipping to Tanzania.
What Are The Specifications of the HOWO NX Mixer Truck?
| Feature | Value |
| Platform | HOWO NX |
| Drive Type | 6X4 |
| Model | ZZ1257N3241W |
| Engine | WD615.47,371HP,EURO 2 |
| Gearbox | HW19710 |
| Drive Axle | HC 16 |
| Front Axle | VGD95 |
| Cabin | HW76 |
| Fuel Tank | 400L,Aluminum Alloy |
| Mixer Tank Agitating Volume | 12 CBM |
| Mixer Tank Geometric Volume | 19.6 CBM |
| Feeding speed | 3 CBM/Min |
| Tyre | 12.00R20 |
Which Other HOWO Truck Models Should You Consider?
| Model | Drive Type | Payload |
| SINOTRUK Full Wheel Drive Dump Truck | 6X6 | 50 Tons |
| SINOTRUK HOWO TX Dump Truck | 8X4 | 80 Tons |
--->Ask us which model is better for cement transportation.
How Does The Mixing Tank Of The NX 12 CBM Concrete Mixer Truck Work?
Once the truck's engine starts running, it drives the power take-off (PTO) to rotate. The PTO then drives a high-pressure oil pump to transmit power to the motor. After the torque is amplified by a reducer, the mixing drum receives power and begins to work. Because the mixing drum needs to keep rotating, otherwise the concrete inside will solidify or segregate, unlike dump trucks, the mixer truck's PTO is a full-time PTO, mounted on the engine flywheel housing, and runs continuously with the engine.
FAQ About HOWO Concrete Mixer Truck
Q: Who are we?
A: We are TRUCKMAN AUTO,a manufacturer with years of experience in research and development, design, and manufacturing in China
Q: How long is the delivery time for shipping?
A: It depends on the order quantity, and generally takes 15-40 days.
Q: How do we ensure quality?
A: Our products use only genuine, original components from well-known brands and come with official brand warranties. Furthermore, we conduct thorough factory inspections on every product before it leaves the factory.
Q: What’s our MOQ
A: For most products, the MOQ is 1 unit.
